Tilting Check Valve

MODEL NO. TLP/TLC

2″(50A) ~ 66″(1650A)

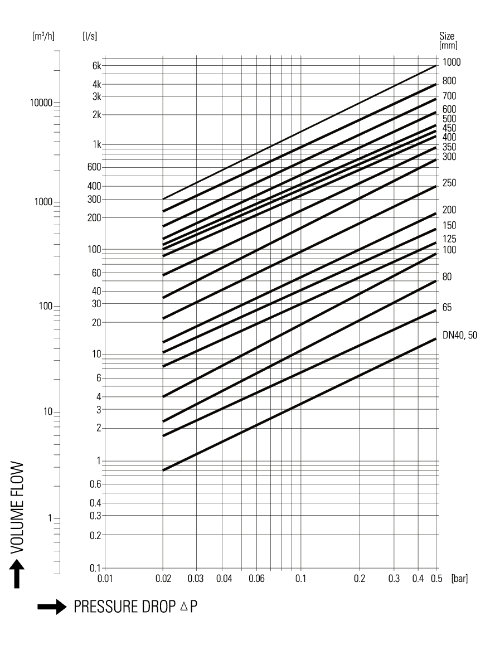

PRESSURE DROP CHART

Specification

Size 2″(50A) ~ 66″(1650A)
Service Oil, Water, Air, Sea Water..etc.
Rating JIS10K~20K, Class 150~300, AWWA C207..etc.
Pipe connections Water, Flanged..etc.
Materials ①Body Stainless Stell, Carbon Steel, Duplex, NI_AI_Bronze..etc.
②Disc Stainless Stell, Carbon Steel, Duplex, NI_AI_Bronze..etc.
③seat Rubber, PTFE, Stainless Steel, Stellite Overlay.

Dimensions

Size
mm(Inch)		 ØA JIS 10K Class 150
OD L OD L
50(2″) 60 101 60 105 60
65(2½”) 67 121 67 124 67
80(3″) 80 131 73 137 73
100(4″) 100 156 73 175 73
125(5″) 125 187 86 197 86
150(6″) 150 217 98 222 98
200(8″) 200 267 127 279 127
250(10″) 250 330 146 340 146
300(12″) 300 375 181 410 181
350(14″) 350 420 184 451 184
400(16″) 400 483 191 514 191
450(18″) 450 538 203 549 203
500(20″) 487 593 219 606 219
600(24″) 596 697 222 718 222
700(28″) 684 807 321 832 321

Above dimesions are subject to change for improvement

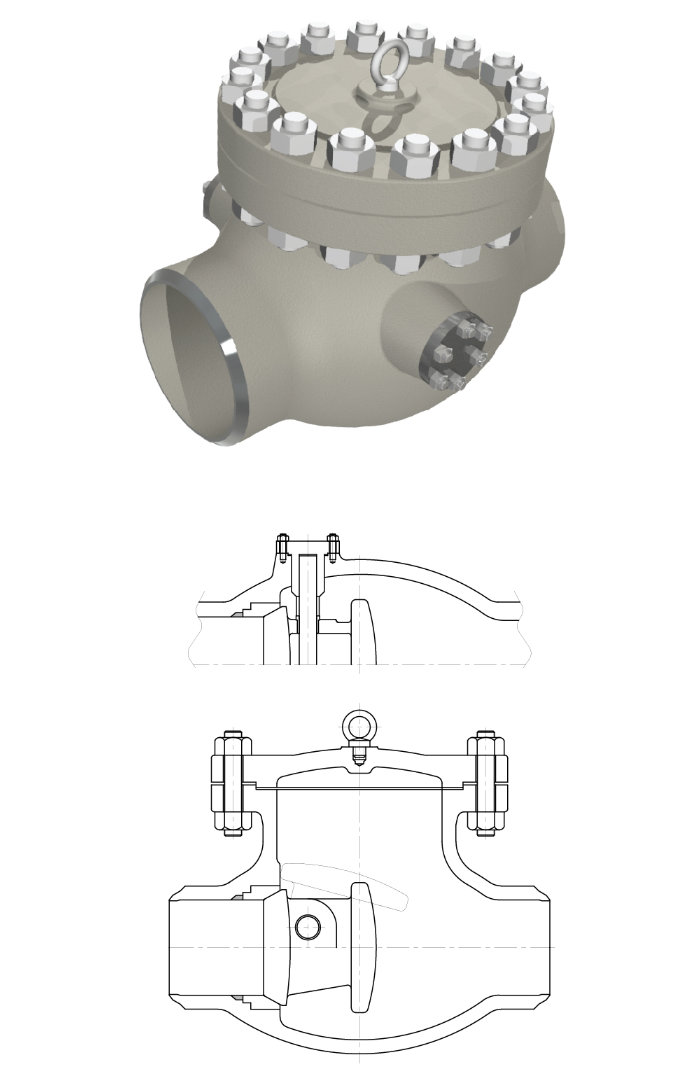

MODEL NO. TLB

2″(50A) ~ 60″(1500A)

Specification

Size 2″(50A) ~ 60″(1500A)
Service Oil, Water, Air, Sea Water..etc.
Rating ASME Class 600~4500
Pipe connections Butt Welding
Materials Stainless Stell, Carbon Steel, Duplex, NI_AI_Bronze..etc.

Type Description
TLP Tilting Plug Type (Wafer)
TLC Tilting Cover Type (Wafer)
TLB Tilting Butt Welding Type (Butt Welding)
LTP Weight Lightening Tilting Plug Type (Wafer)

MODEL NO. LTP

4″(100A) ~ 10″(250A)

Specification

Size 4″(100A) ~ 10″(250A)
Service Water, Sea Water..etc.
Rating PN10
Pipe connections Water
Materials ①Body Stainless Stell, WCB..etc.
②Disc Stainless Stell, WCB..etc.
③seat Metal

Dimensions

Size
mm(Inch)		 ØA JIS 10K 중량
(kg)
OD L
80(3″) 72 142 64 3
100(4″) 90 162 64 4
125(5″) 112 194 70 6
150(6″) 135 219 76 10
200(6″) 180 273 89 17
250(10″) 225 329 114 24

Above dimesions are subject to change for improvement
